MIDIBox, a multi-standard MIDI hub

ELECTRONICSDIY

Abstract

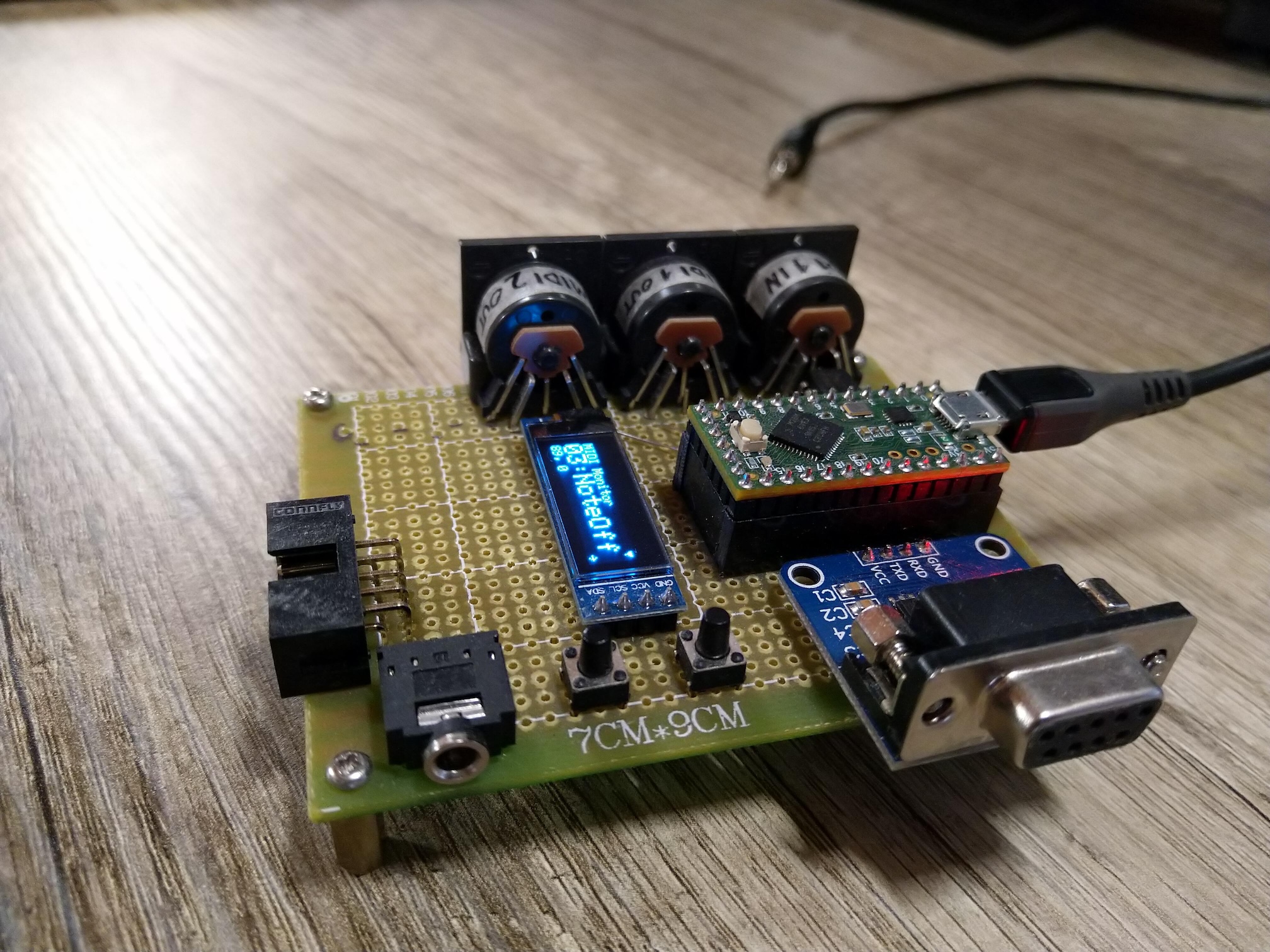

The MIDIBox 2016x1512 976.8 kB

MIDIBox is a multi standard MIDI hub based on the Teensy microcontroller platform. It support different MIDI hardware type such as standard MIDI DIN, class compliant USB MIDI device and midi over RS-232 serial, in order to be able to use midi also in older x86 PC (like 286/386/486) where a MIDI card can be difficult to find.

It works without a computer (requires USB power) and each MIDI I/O is routed to all of the hardware ports.

Expansion

The pot expansion allows the MIDIBox to become a 16 channel pot controller with an assignable MIDI channel and CC number.

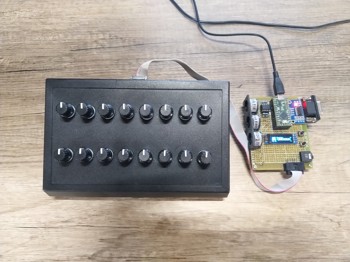

The complete MIDIbox assembly 2016x1512 1097.1 kB

Mode of operations

The MIDIBox incorporates other functions like:

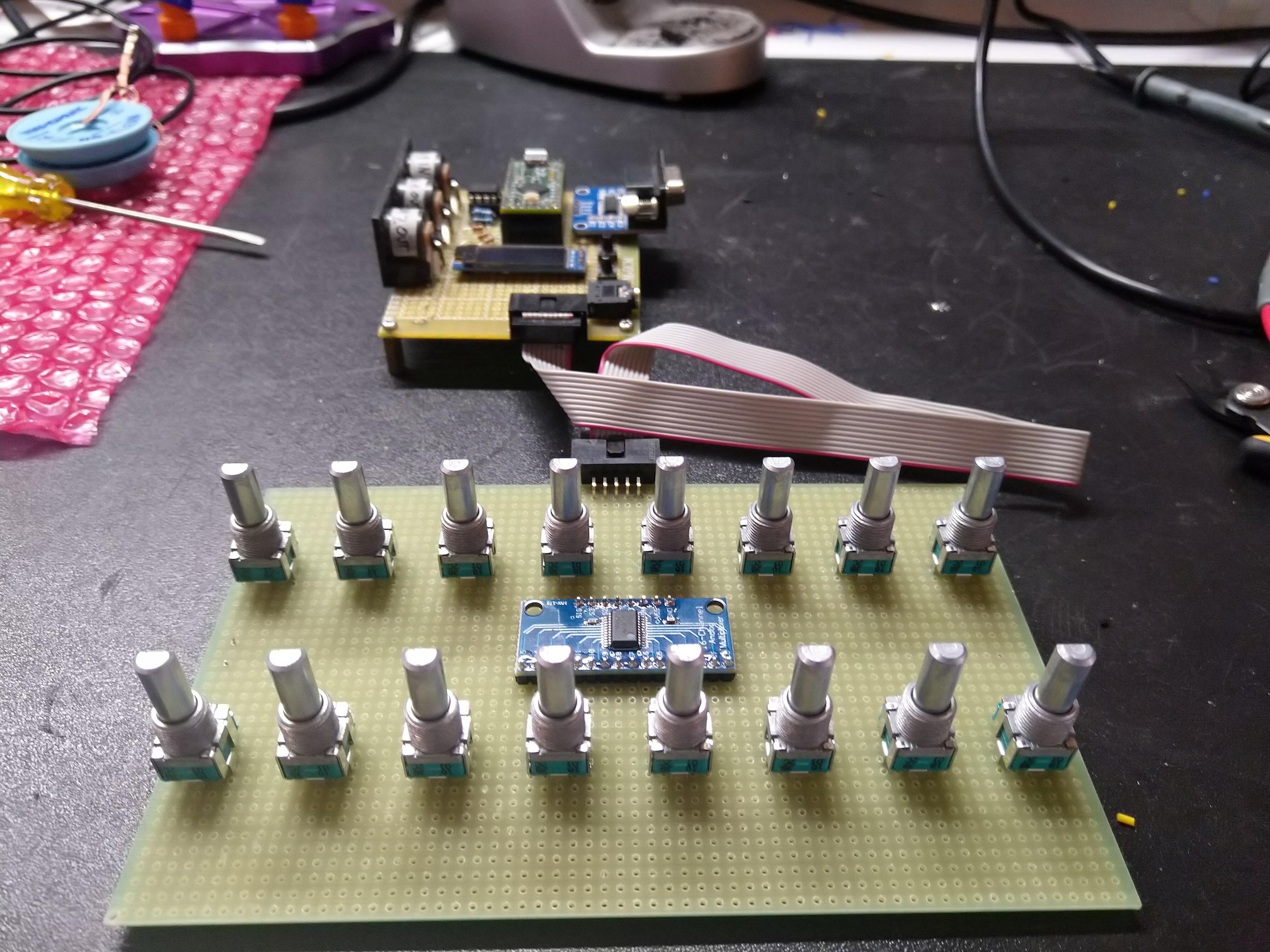

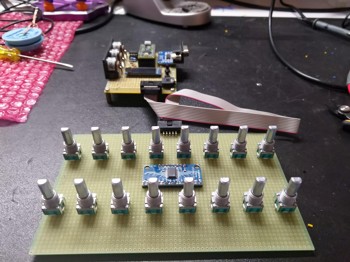

Pot multiplexer 2016x1512 984.6 kB

The firmware is on this Gitlab page.
