DIY EML Listening Device

DIYEMFELETTROMAGNETICA

Abstract

An EMF listening device is a special microphone with a dedicated pre-amp that is able to capture the Electromagnetic field in the spectrum of the VLF.

The LOM ecording label and instrument maker, made both a DIY kit and an already made instrument for it and it's called Elektrosluch.

My personal device

Unfortunately, most of the amazing instruments made by LOM goes out of stock really fast. However, they kindly provide the schematics for the Elektrosluch DIY.

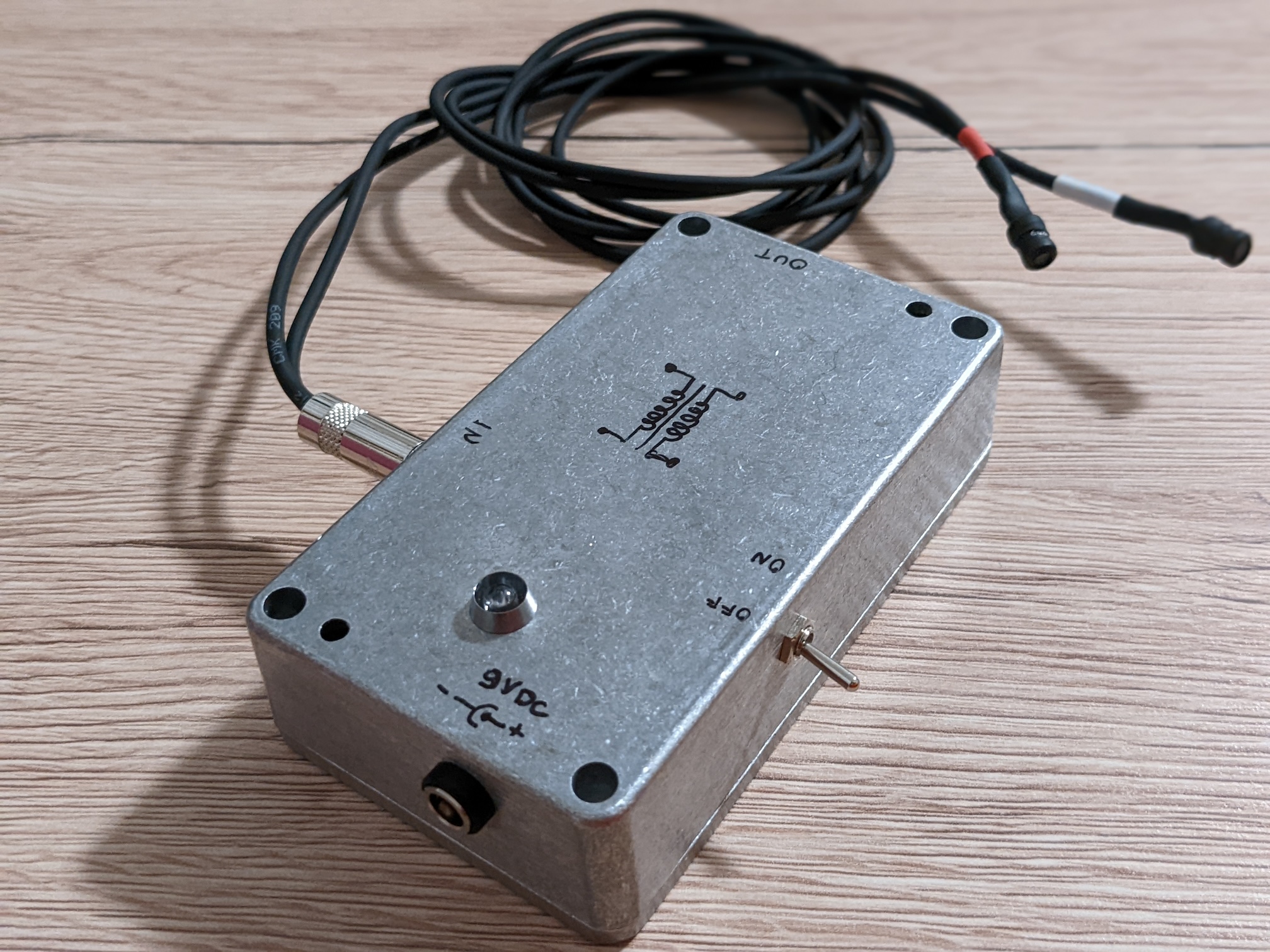

My DIY version of the Elektrosluch

My personal EMF listening device is based on that schematic. I've made the PCB routing in Eagle and I've etched the PCB using the UV method.

Elettromagnetica

This DIY EMF listening device is the main recording means used for recoring the album Elettromagnetica.
